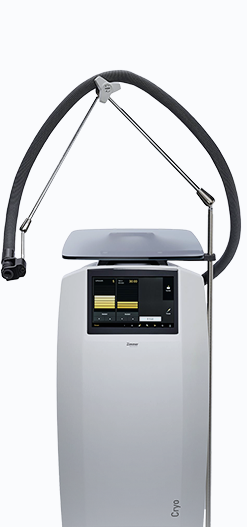

Cryo 7

Non-contact cold air therapy with
temperatures as low as −30°C

Cryo 7's complex German engineering delivers
simplicity of use to the practitioner

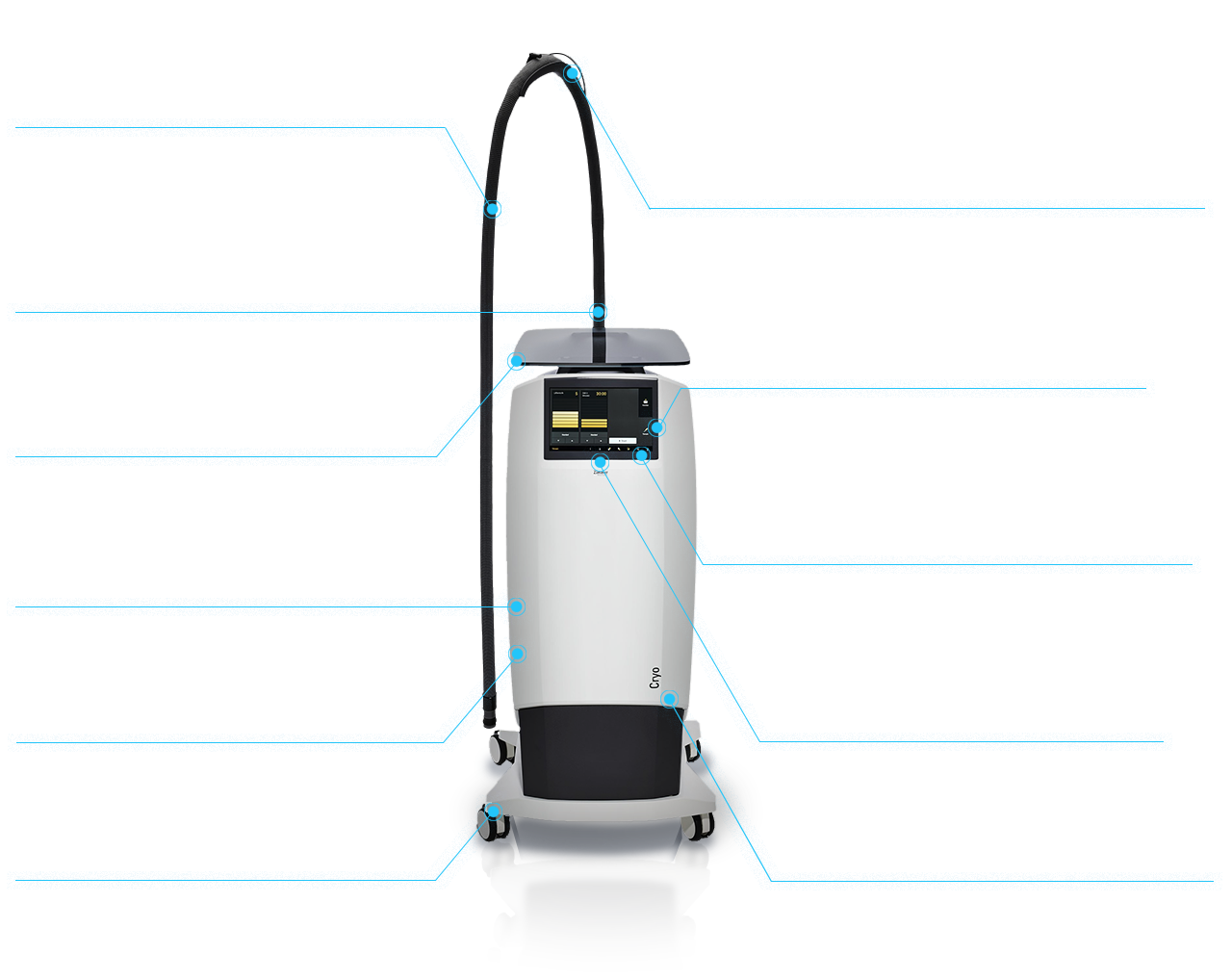

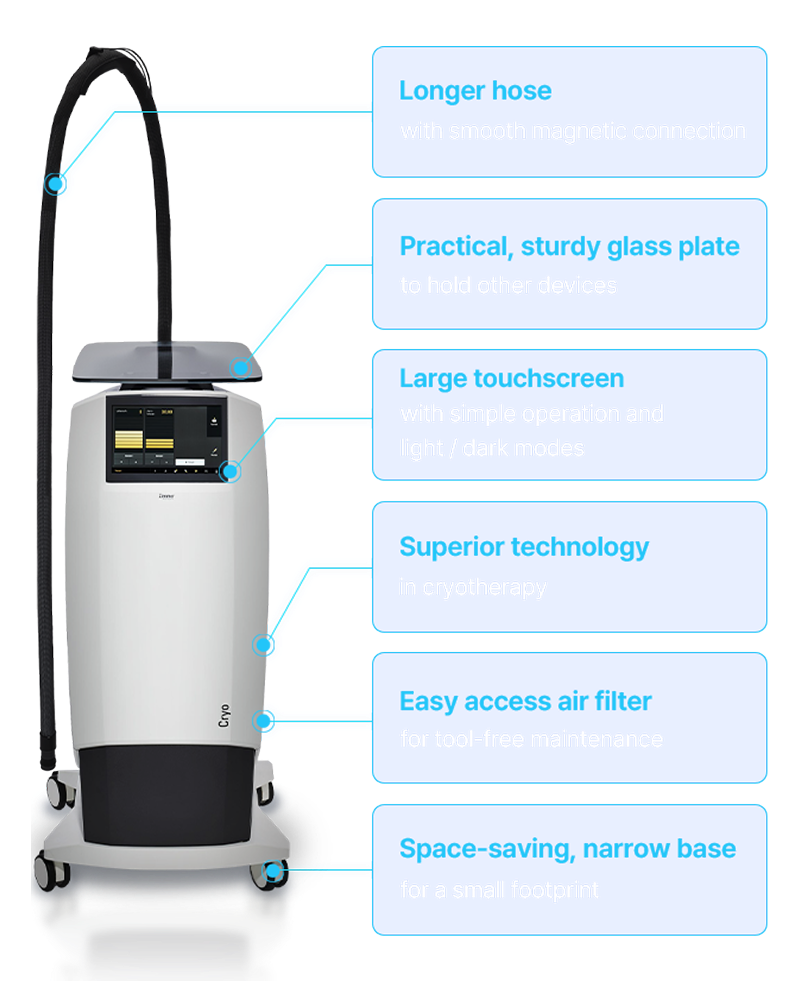

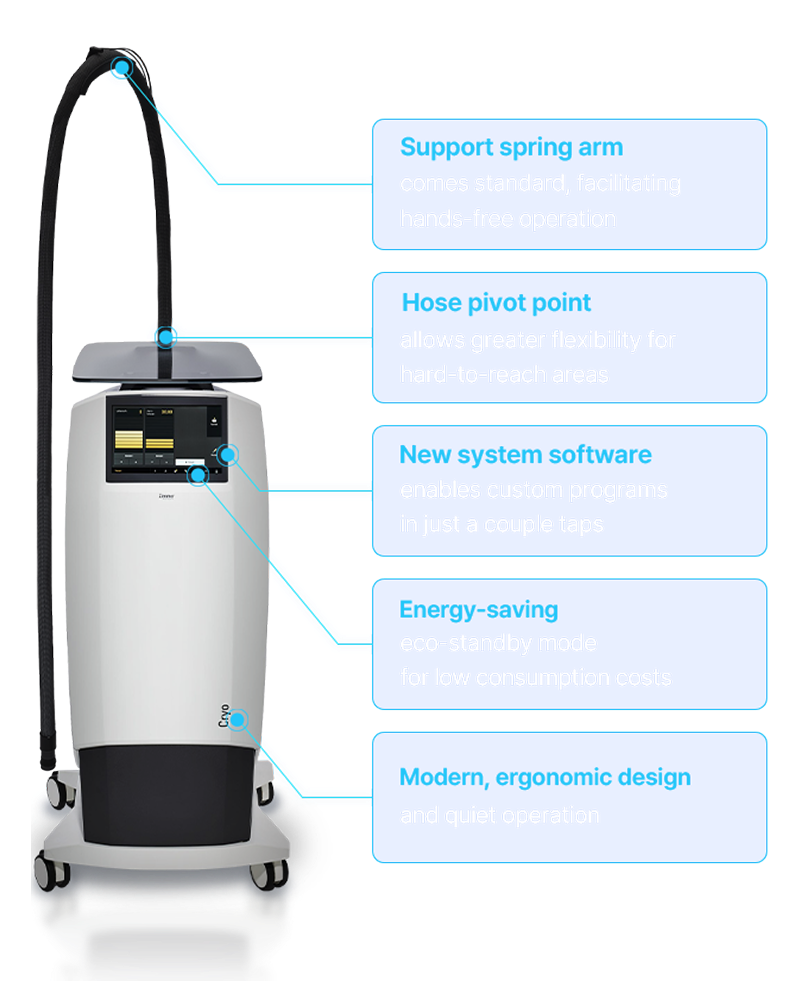

• 01 Large, bright, Ergonomic touchscreen
• 02 Engergy-saving eco-standby mode
  for even lower consumption costs
• 03 Quieter operation
• 04 Software monitors defrost water level and
  alerts the user when the water tank is full
• 05 Support spring arm comes standard
  for single-handed operation
• 06 2 dedicated air intakes: one for patient
  skin cooling and another to cool the device
• 07 9 fan speeds
• 08 Easy access air filter for quick
  & easy maintenance (no tools required)
• 09 Longer hose, magnetic connection
• 10 Ergonomic height makes device
  easy-to-reach and easy on the back
• 11 Hose pivot point allows greater flexibility
  for hard-to-reach areas
• 12 Easier access to a larger water
  collection bottle
• 13 Automatic maintenance reminders
• 14 Space-saving narrow base, small footprint
• 15 New system software enables 100 custom
  program settings
• 16 Light mode / dark mode

Compelling therapeutic success with cold air as low as -30℃

Broad spectrum of applications

Cold air therapy is useful for fast and intensive cooling of the skin,
as well as for longer periods of moderate cooling to decrease the temperature in deeper
layers of tissue.

Acute & chronic musculoskeletal pain

• Rheumatic diseases
• Tendinopathies
• Acute inflammation
• Lower back pain

Neurological Spasticity & Procedure-related Pain

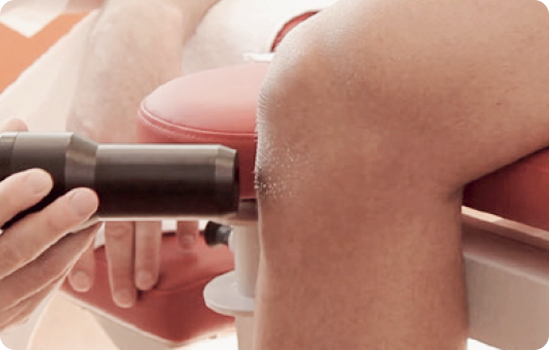

• Knee
• Shoulder
• Spinal surgery

Periprocedural & pain

• Dermatological treatements
• Photodynamic laser therapy
• Chest drain removal
• Before/during injections and aspirations

"I have used all of Zimmer’s Cryo units over the years and have one unit that is over 13 years old. We use it every day and it is still going strong.

These are workhorse devices. We use a Zimmer Cryo with almost all our energy-based treatments.
The cold air temperature is delivered consistently to avoid overheating the skin.

We also utilize the unit’s epidermal skin numbing technology which provides a sensory block; patients receive a more pain-free experience.
The Cryo 7 is a significant advance over earlier versions. It minimizes energy costs with a new standby mode.

The hoses that deliver the cold air have been improved; the cooling is better, and it is designed for reliable use all day long.
Zimmer’s engineers are constantly innovating and making these cooling units more reliable."

– Emil A. Tanghetti, MD / Board-Certified Dermatologist / Fellow of the AAD and ASLMS

Combination therapy
with cold air

Cryotherapy can enhance efficacy
when combined with other treatments like:

• Step 01

  Application of cold air (15-20 min.)
  prior to movement therapy
  for improved results

• Step 02

  Combination with compression
  for acute injuries

• Step 03

  Muscular trigger points
  in combination with stretching

In your practice – User-friendly,
ecological & low-maintenance

Easy to use and a breeze to maintain

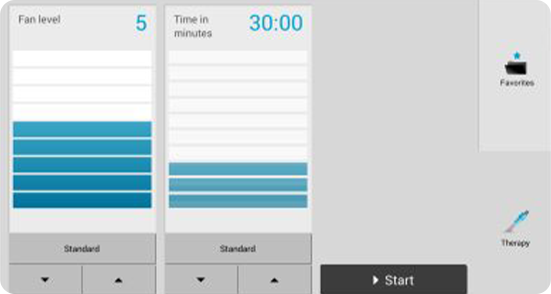

Therapy screen – Light mode

The Cryo 7 is operated via a high-resolution 10-inch
touchscreen. Over 100 default and custom therapy programs
can be easily set and retrieved through intuitive menus. Its
ergonomic design provides easy access to all controls, while
the included spring support arm enables convenient
hands-free operation, especially during long treatments.

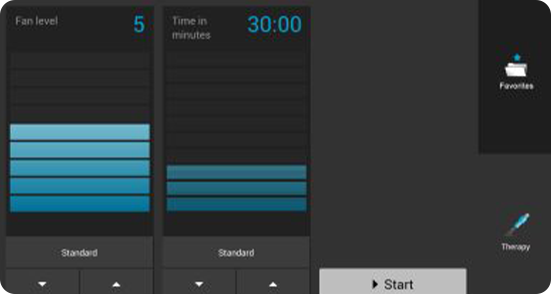

Therapy screen – Dark mode

The practical glass shelf is ideal for storing additional treatment
devices and supplies. Maintenance has never been easier!
The system’s self-monitoring defrost water level and defrosting
function ensure smooth operation. The air filter is readily accessible
and can be replaced, when needed, without the use of tools.

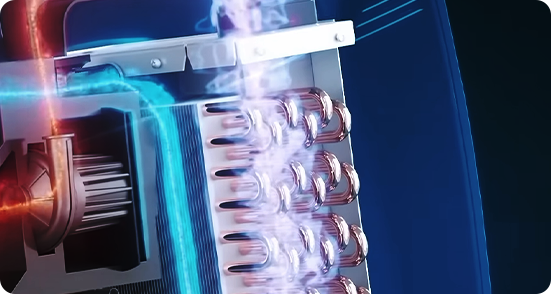

Energy- and cost-efficient

Cryo 7 operates efficiently, without any significant
costs. This machine is designed for reliable, all-day operation.
The new “standby” mode further improves its energy
efficiency, without sacrificing action readiness.

Equipment

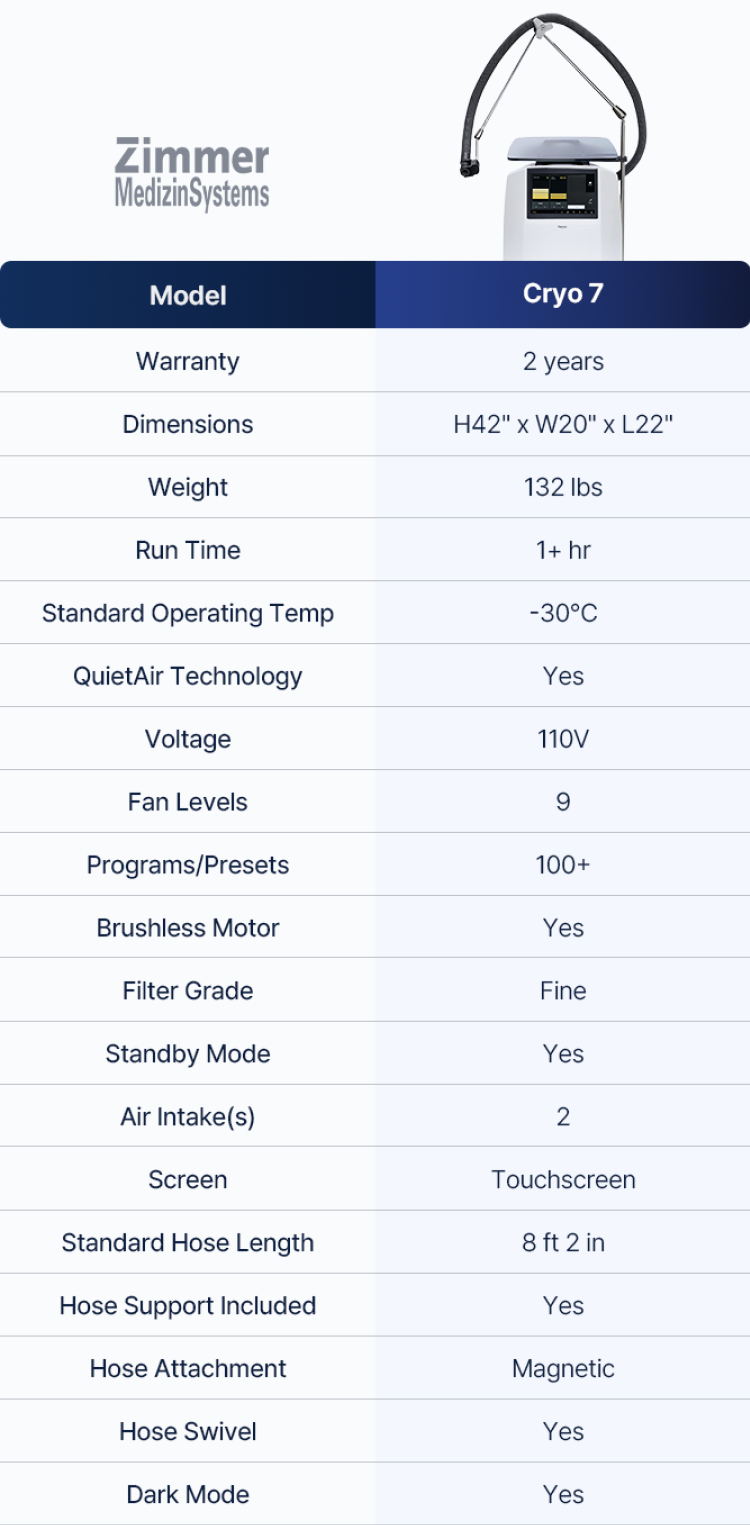

Comparison Chart

Model	Cryo 5	Cryo Mini	Cryo 6	Cryo 7
Warranty	DISCONTINUED	1 year	2 years	2 years
Dimensions	H38" x W13" x L18"	H25" x W13"x L23"	H25" x W15" x L27"	H42" x W20" x L22"
Weight	121 lbs	75 lbs	132 lbs	132 lbs
Run Time	1+ hr	<20 min	1+ hr	1+ hr
Standard Operating Temp	-30°C	-10°C	-30°C	-30°C
QuietAir Technology	No	No	No	Yes
Voltage	110V	110V	110V	110V
Fan Levels	6	9	9	9
Programs/Presets	N/A	3	3	100+
Brushless Motor	No	No	Yes	Yes
Filter Grade	Coarse	Coarse	Coarse	Fine
Standby Mode	No	No	No	Yes
Air Intake(s)	1	1	1	2
Screen	Analog	LED	LED	Touchscreen
Standard Hose Length	6 ft	6 ft	6 ft	8 ft 2 in
Hose Support Included	No	No	No	Yes
Hose Attachment	Screw On	Track	Track	Magnetic
Hose Swivel	No	No	No	Yes
Dark Mode	No	No	No	Yes

Cryo 7 Cryo 6 Cryo Mini Cryo 5
